PK1D2 COMPONENTSFIXED RATIODISPENSE

Fixed-ratio 2K dispensing in the smallest footprint we make.

Patented LDP metering and XV4 cross-over, sized for benchtop cells and automated XYZ integration. Handles abrasive, heavy-filled, thixotropic and odd-ratio materials.

Request a quote for PK1D Datasheet (PDF) ↓
PK1D on a mobile cart with two drum supply pumps and a dispense valve on its stand
PK1D touchscreen HMI control interface
TOUCH SCREEN CONTROL — 6" HMI
HOW IT WORKSExplore the technology →
PK1D with an integrated supply tank, dispense valve on its stand and a foot pedal
PK1D WITH INTEGRATED SUPPLY TANK
BEST FOR
Potting & EncapsulationConformal CoatingCartridge LoadingBonding / Gasketing

Technical specifications.

* APPLICATION DEPENDENT
Mix ratio range A:B — fixed ratio1:1 · 2:1 · 4:1 · 10:1 *
Mix ratio tolerance range±1% *
Minimum shot size0.5 g (0.018 oz) *
Minimum flow rate5 cc/min (0.17 fl oz/min) *
Maximum flow rate5,000 cc/min (1.35 gal/min) *
Maximum fluid working pressure>3,000 psi *
Air supply pressure range80–120 psi (5–8.5 kg/cm²) @ 20 CFM
Operating temperature range4–60 °C (40–140 °F)
Electrical requirements120 VAC (60 Hz) 1Φ, 10 A · 220 VAC (60 Hz) 1Φ, 5 A
Wetted materials303 / 316 SS, TFE, UHMWPE
Viscosity range of fluids1 cps to non-flow abrasive compounds
Fluids handled1–2 components: epoxies, urethanes, silicones, acrylics, polyesters

Why it holds ratio — and keeps holding it.

LDPLinear Displacement Pump
  • Double-acting positive-displacement rod pumps (patented)
  • Continuous metered flow, virtually pulse-free — shorter cycle time
  • No pistons, check valves or flow meters: no slip factor, no calibration
  • Low shear preserves density of syntactic compounds
XV4Cross-Over Valve
  • Automated 4-way directional flow control valve (patented)
  • Replaces check valves for load/dispense during LDP reciprocation
  • Balances inlet/outlet pressures for continuous pulse-free flow
PLCServo Motor Pump Drives
  • Precision mix ratio and flow control
  • Factory automation control functions built in
HMITouch Screen Control
  • 6" monochrome touchscreen interface
  • No mechanical control adjustments
  • Manual and programmable dispense modes
STANDARD FEATURES
— Linear Displacement Pumps (LDP)
— Cross-Over Valves (XV4)
— PLC controlled servo drive
— Touch screen control interface (6" monochrome)
— Dispense valve gun
— Floor stand
— Dispense modes: manual / programmable
OPTIONAL FEATURES
+ Material Supply Sensors (MSS) — inlet material sensors
+ Liquid level sensors — pressure pots, pails, drums, totes
+ Auto pressure balancing — inlet supply / outlet dispense
+ Static mounted dispense valve — foot switch or robotic activation
+ Robotic integration — start/stop, flow control, purge/flush
+ Type X air purge — Class I, Div 1, Group D
+ Material supply — pressure pots / transfer pumps
+ Signal tower — LED light / audible alarm
+ Cabinet surface mount brackets · overhead jib crane
+ TFE SS braided hose assemblies
+ Thermostatic controlled heating solutions

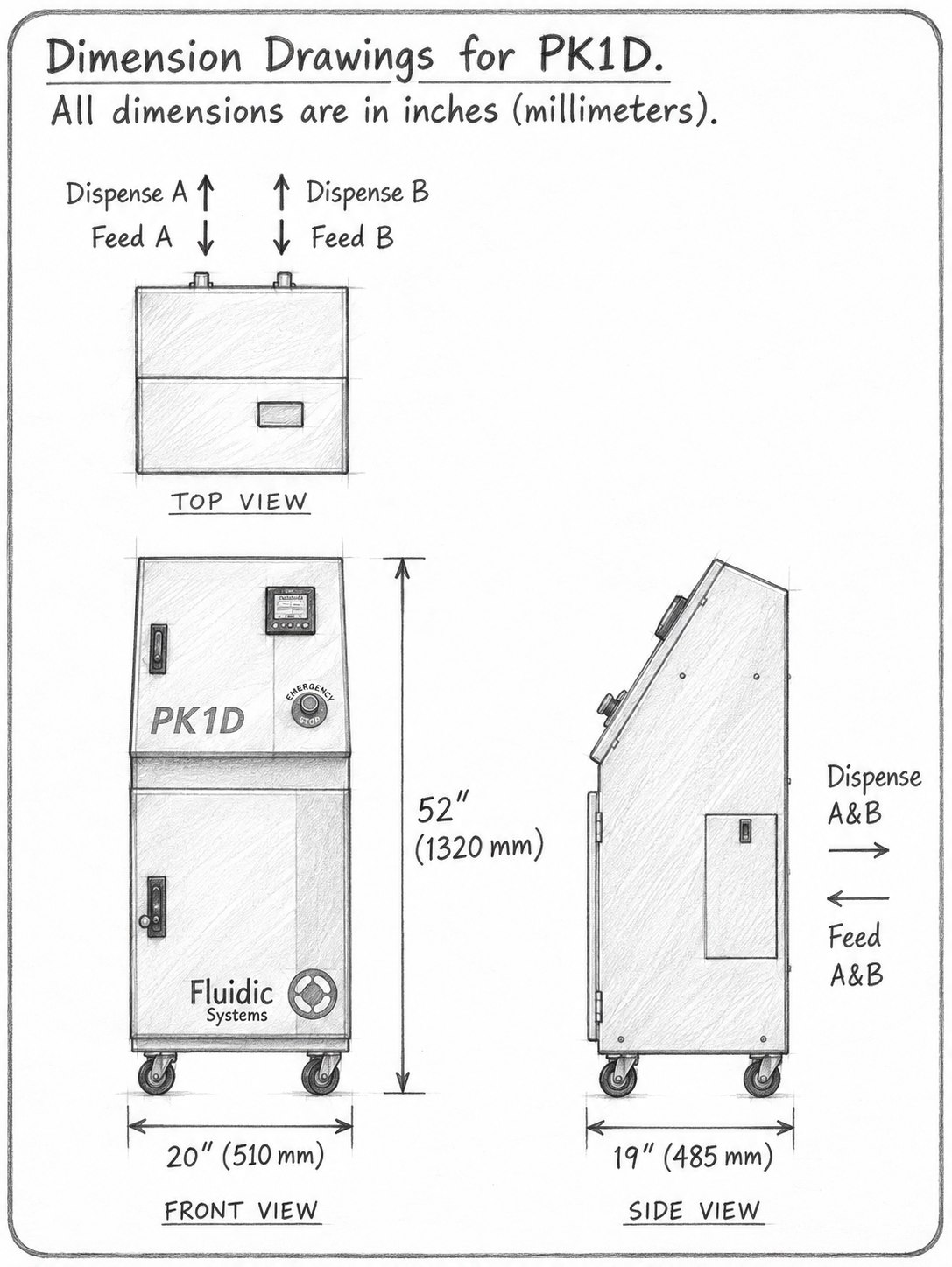

PK1D dimensional drawing with cabinet measurements
FIG. 01 — PK1D DIMENSIONS

How it compares.

Full comparison matrix →
PK1D2K · FIXED · DISPENSEPK2D2K · VARIABLE · DISPENSEPK3D3K · VARIABLE · DISPENSECUSTOM4K+ · ENGINEERED

Is the PK1D right for your material?

Send your chemistry, ratio and flow rate — an engineer will confirm fit.
